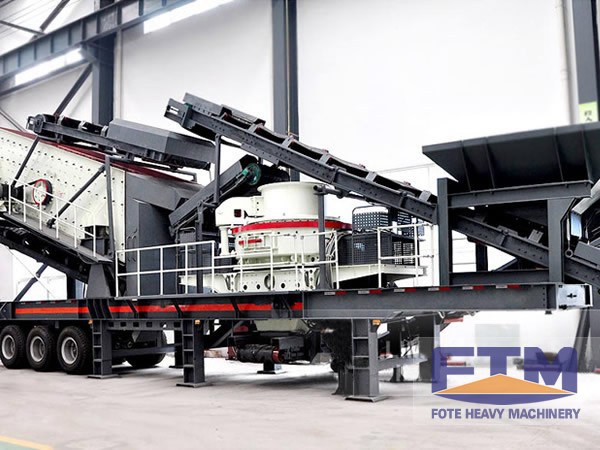

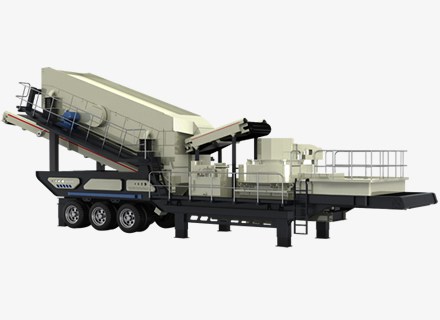

Mobile Vsi Crusher

Type: tertiary crusher Input Size: 0-50mm Processed Materials: Iron ore, copper ore, gold ore and silver ore, zinc ore, manganese ore, limestone, granite, basalt, river stone, coal gangue, quartz Applications: Mechanism sand, bituminous concrete, metal mine, aggregates shaping

Mobile VSI crusher is also called impact mobile crushing station, which belongs to one kind of mobile crushing stations.

Get a Quote Services Online
Detailed Description

Mobile VSI crusher is also called impact mobile crushing station, which belongs to one kind of mobile crushing stations. It is mainly equipped with vertical shaft impact crusher, multi-layer vibrating screen and belt conveyor.


Wheel mounted mobile VSI crusher is mainly used in construction, chemical industry, building materials and other sectors that often require relocation work, which is very suitable for expressway, railway, hydropower engineering and other working environment with strong mobility. It can process various kinds of materials and produce stone and sand with different particle sizes at the same time.

Mobile VSI Crusher

Because mobile vertical shaft impact crusher is mainly equipped with vertical shaft impact crusher, so it is also called mobile sand maker. According to specific situation, the mobile VSI crusher can be divided into closed circuit type and open circuit type. This kind of mobile cruhsers uses tyre as mobile platform.

Technical Parameters
Model FTM3S1848V08 FTM3S1860V09 FTM3S2160V103
Transportation length(mm) 13500 15600 15600
Transportation Width(mm) 2830 2830 3100
Transportation Height(mm) 4350 4350 4480
Maximum Length(mm) 14650 16300 16300
Maximum Width(mm) 3900 3900 3900
Maximum Height(mm) 5980 6400 6550
Weight(t) 31 36 49
Tire Configuration Biax Fitted Biax Fitted Biax Fitted
Sand maker HVI0815 HVI0922 HVI1032
Discharging Belt Conveyor B800×2.2M B800×2.5M B1000×2.5M
Belt under vibrating screen B800×7M B800×8M B1000×8M
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160
