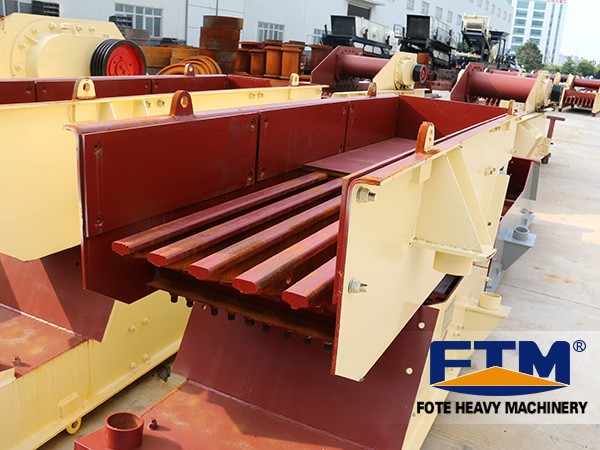

Vibrating Feeder
Type: Necessary Equipment Input Size: 0-1000mm Processed Materials: River gravel, granite, basalt, quartz, iron ore, diabase, limestone, coal gangue, etc. Applications: Aggregate field, concrete mixing plant, dry motar plant desulfurization, quartz sand, etc.Vibrating feeder is the first equipment used in a stone production line and the function of a feeder machine is to evenly and automatically send large stone or raw materials to belt conveyor or other crushing machines.
Vibrating feeder is the first equipment used in a stone production line and the function of a feeder machine is to evenly and automatically send large stone or raw materials to belt conveyor or other crushing machines.

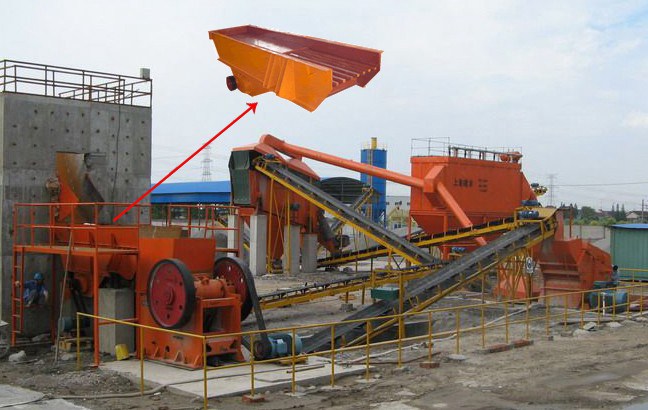

Position of Vibrating Feeder in a Production Line
Vibratory feeder can be used in various industries such as metallurgy, mine, coal and chemistry and Hongxing vibratory feeder has reliable performance, simple installation and good sealing, thus avoiding dust and reducing pollution.
The matters needing attention when using vibration feeder: when installing a vibration feeder, keep it a certain dip angle, so that materials can be more easily fed into the material receiving device.

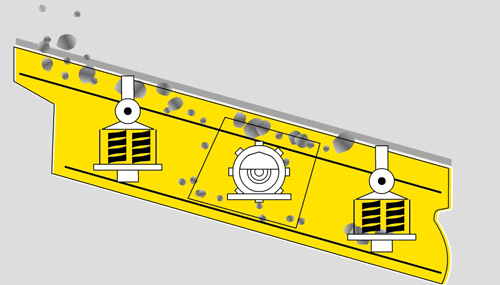

Working Drawing of Vibrating Grizzly Feeder
| Model | Max. Feeding Size (mm) |
Processing Capacity (t/h) |
Motor Power (kw) |
Obliquity of material trough (°) |
Trough size (mm) |
Dimensions (L×W×H)(mm) |
| GZD-650×2300 | 300 | 80-100 | 1.2×2 | 10-20 | 650×2300 | 2300×1360×780 |
| GZD-750×2500 | 350 | 100-130 | 1.5×2 | 10-20 | 750×2500 | 2500×1460×780 |
| GZD-850×3000 | 400 | 120-150 | 3×2 | 10-20 | 850×3000 | 3110×1800×1600 |
| GZD-1000×3600 | 500 | 150-200 | 3.7×2 | 10-20 | 1000×3600 | 3850×1950×1630 |
| GZD-1100×3600 | 580 | 240-300 | 3.7×2 | 10-20 | 1100×3600 | 3600×2050×1660 |
| GZD-1300×3600 | 650 | 450-600 | 7.5×2 | 10-20 | 1300×3600 | 3900×2350×1750 |
| GZD-1500×3600 | 1050 | 450-1000 | 7.5×2 | 10-20 | 1500×3600 | 3900×2000×1750 |
| GZD-2000×3600 | 1200 | 550-1000 | 10×2 | 10-20 | 2000×3600 | 3600×2000×1750 |
| GZD-2500×5000 | 1500 | 650-1500 | 18×2 | 10-20 | 2500×5000 | 5000×2500×1800 |
| ZSW-380×95 | 500 | 100-180 | 11 | 0-10 | 3800×960 | 3920×1640×1320 |
| ZSW-490×110 | 630 | 150-400 | 15 | 0-10 | 4900×1100 | 4980×1830×1320 |
| ZSW-490×130 | 750 | 400-700 | 22 | 0-10 | 4900×1300 | 4980×2580×2083 |
| ZSW-600×130 | 750 | 400-700 | 22 | 0-10 | 6000×1300 | 6082×2580×2083 |
| ZSW-600×150 | 800 | 500-900 | 30 | 0-10 | 6000×1300 | 6086×2662×1912 |
| ZSW-600×180 | 900 | 700-1300 | 45 | 0-10 | 6000×1500 | 6310×3262×2230 |
| ZSW-600×200 | 1200 | 800-1500 | 55 | 0-10 | 6000×2000 | 6310×3462×2230 |
